IRIDIUM® Products

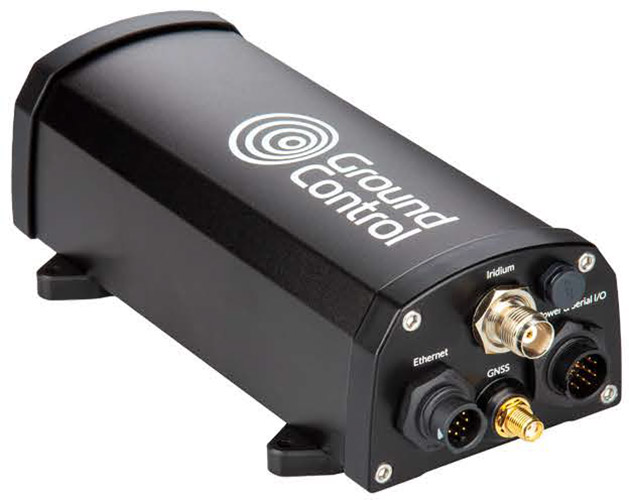

RockREMOTE Mini
This compact, mid-bandwidth data transfer device offers essential satellite network capability and broad interface options, while drawing very low power. RockREMOTE uses the Iridium CERTUS 100 airtime service. Iridium Messaging Transport (IMT) is also available on this device.
The RockREMOTE Mini offers a reliable rugged device for anyone looking to connect a LAN or WAN in remote, challenging locations, potentially low in power supply with unreliable or zero cellular network coverage.
- Low cost
- Low power (features activation)
- Rugged & Resilient
- Integration friendly
- Sleep I/O + 4 GPIOs
- Embedded GNSS
- DHCP / Firewall / NAT
- AT commands
- RS232 / RS485
Pysical & Environmental
- Device Size (LxwxH) : 182.10 x 74.49 x 53 mm
- Weight: 550g
- Form Factor: Aluminium Casing
- Vibration rating: Mechanical vibration and shock to SAE J1455 when mounted as instructed
- Operating Temperature: -40C to +70C, <95% RH
- EMC Compliance: CE& FCC & IC
- Power Cabling: Power included in 2m 12 core IO cable
- Iridium Antenna: TNC
- Iridium Antenna cable: Various options ranging from 0.5m to 9M
- GNSS Antenna connection: SMA
Compute Module
- Processor: ARM Cortex M7, 550MHz
- Memory: 564kB RAM, 1GB Flash
- Operating System: FreeRTOS based
Electrical / Power
- Voltage required: 10-30V DC
- Power Consumption: <10mW/30mW (12V/24V) (sleep)
- Peak Current Draw: <1.66A@12V, 833m1@é’v, 10ù duty cycle during Iridium transit
Communications
- Iridium Certus 100: TCP/IP: 22Kbps up/88Kbps down
- Iridium Messaging Transport (IMT) Data transfer packet size flexible from 1 to 100,000 bytes
- GNSS GPS, Glonass, Bei-dou, Galileo, QZSS
- LAN: 10/100 Ethernet PoE capability
- WAN: Iridium Certus 100 / IMT
- Bluetooth: BLE 5.0
- Serial: AT Command set for IMT message exchange
