IRIDIUM® Products

RockREMOTE Rugged Hardware

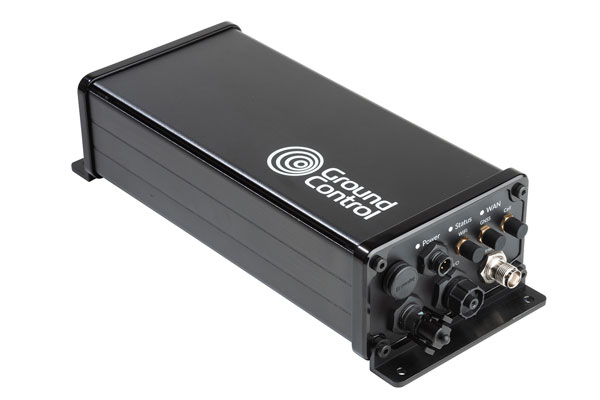

Iridium RockREMOTE Rugged

Built to perform where conditions are toughest, this rugged solution keeps your critical assets connected anywhere in the world.

By combining satellite and cellular networks, it ensures continuous, cost-efficient data transmission, so you can monitor, manage, and act with confidence, even in the most isolated locations.

Get a quote

Features

  • Rugged Exterior Casing
  • Hybrid connectivity
  • Web admin interface
  • Integrated GNSS
  • Integrated firewall & VPN
  • Serial interfaces & Ethernet LAN
  • Sleep mode
  • Message compression

Technical specifications

Pysical & Environmental:

  • Satellite Transceiver: Iridium CERTUS 9770 Transceiver
  • LTE Cellular Module: Regional specific variants
  • Device size: 250mm 97mm x 61mm (LxWxH)
  • Weight: 1.2kg
  • Form Factor: Aluminium casing
  • IP Rating: IP67
  • Vibration Rating: EN 300 019-2-5, EN 300 019-2-7
  • Operating Temperature: -40°C to +70°C
  • EMC Compliance: CE & FCC & IC
  • Power cabling 1 x 2M power cable with cut end
  • Iridium Antenna: 95mm diameter x 191mm height, pole mounted omnidirectional antenna, and 1 x 9M antenna cable, including connectors

Electrical Power:

  • Voltage Required: 10 to 30V DC
  • Power Consumption: 0W (sleep), 5W (idle), 9W (average transmit)

Compute Module:

  • Processor: Quad Core 1.5GHz
  • Memory: 2GB RAM, 8GB Flash
  • Operating System: Linux based

Communications:

  • Iridium Certus 100: TCP/IP: 22Kbps up/88Kbps down. LTE failover
  • Iridium Messaging Transport (IMT): Data transfer packet size flexible from 1 to 100,000 bytes
  • Cellular: LTE Cat 1 and Cat4. Automatic WAN failover
  • GNSS GPS, Glonass, Bei-dou, Galileo, QZSS
  • LAN: 10/100 Ethernet PoE capability
  • WAN: Iridium Certus 100 / IMT
  • Wifi: 2.4 GHz, IEEE802.11 b/g
