IRIDIUM® Products

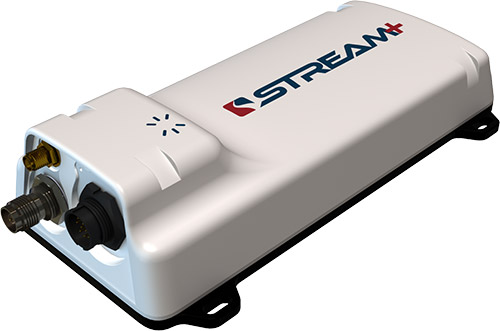

Iridium Stream+

STREAM+

STREAM+ is an advanced Iridium transceiver package that delivers cost-effective, two-way connectivity anywhere on Earth. It supports seamless data access through services like AWS, ensuring flexible file management.

Designed for field applications, STREAM+ is compact, power-efficient, and integrates easily with industry-standard protocols, reducing development costs and time-to-market.

Powered by Iridium Certus® 100 and Iridium Messaging Transport℠, it enables secure data transfers of up to a few megabytes, ensuring reliable connectivity even in remote locations.

Get a quote

Features

  • Low power
  • Power control & status lines
  • Embedded GPS
  • JSON API
  • RS232 / RS485
  • Rugged & Resilient

Technical specifications

Mechanical design

  • Dimensions: L 205 mm x 105 mm x H 48 mm / L 8.08” x W 4.13” x H 1.88”
  • Weight: 620g / 21.9 oz
  • Mounting: 10 Pin Panel Mount, Receptacle, Male Pins, Bayonet Lock Connector
  • Antenna: GPS Antenna – Female SMA Connector, Iridium Antenna – Female TNC Connector
  • Enclosure: Integrated Aluminium Heat Sink, Pressure equalizing gore vent

Physical Product

  • uController: Controls file and message transfers, drives the status lines, provides a simple JSON API through the serial port
  • Power Control Line: Allows an external controller to switch the device on/off
  • Status Lines: Message/File inbox state Message/File Outbox state
  • Hardware interfacing: RS232 interface, RS485 interface (half-duplex)
  • Flash Memory: Extra storage for large file transfers
  • GNSS: GNSS to support stand alone telemetry solutions, external active antenna, open drain pulse per second, Iridium Antenna, External passive antenna
  • Ingress Protection: IP67

Firmware Functionality

  • Bootloader
  • Serial Communication
  • Logging: GNSS
  • OTA Communication

Electrical Design

  • 10-40 V DC Supply
  • 30 W Supply Power
  • Protected Open Drain Outputs
  • LED Status Indicator
  • Automotive pulse protected
  • Safe Shutdown (supercapacitor)
  • Standby Mode Current 20mA, at 12 V
  • Shutdown Mode Current 4.5 μA, at 10-40 V
  • Transmit & Receive Power 10 W Max Avg, 30 W Max Peak
  • Data speed 22 kb/s up, 88 Kb/s down
