IRIDIUM® Products

Certus™ 9770

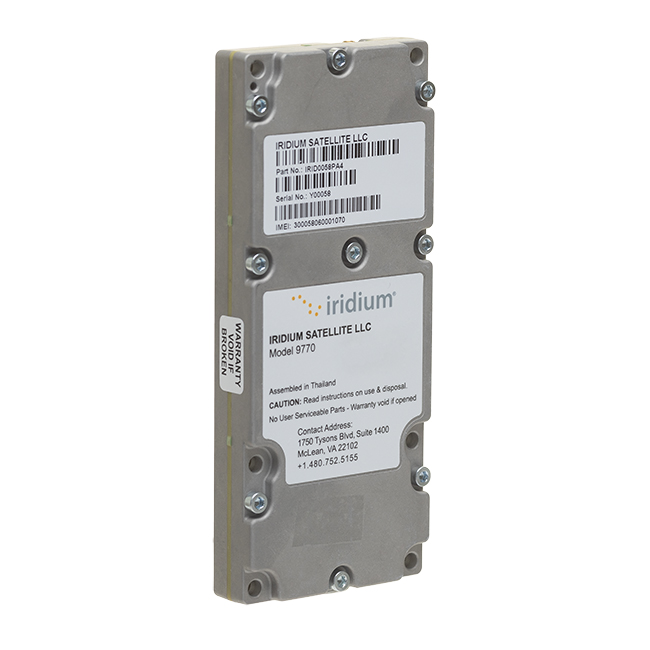

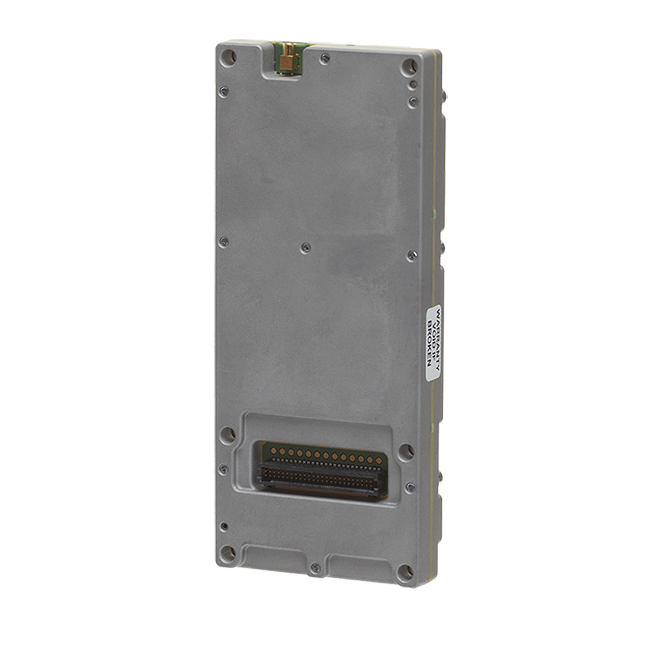

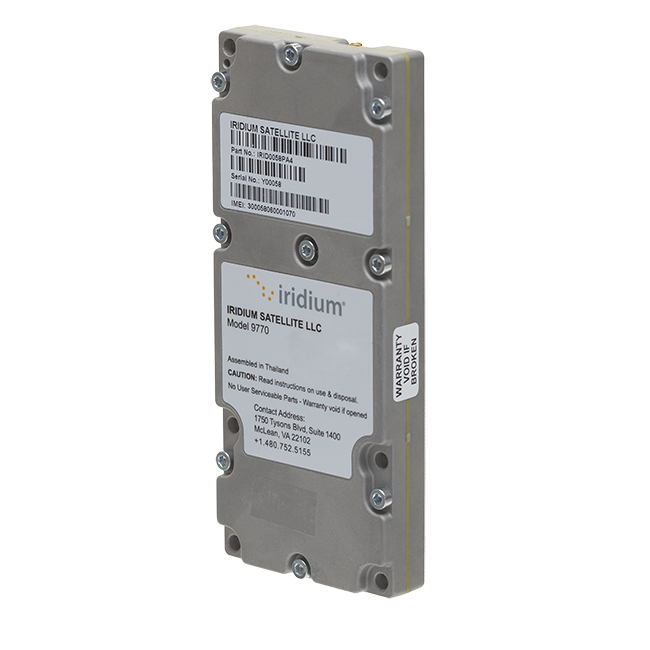

The Iridium Certus™ 9770 transceiver is an Iridium® core technology component providing low-latency and weather resilient connectivity using the Iridium’s global satellite constellation’s unique Low-Earth Orbit architecture of 66 cross-linked satellites.

Get a quote

Description

As a leading Iridium Value Added Reseller, CLS is proud to be a CERTUS 9770 Beta Tester. We will provide both the CERTUS hardware and Airtime

The Iridium Certus™ 9770 transceiver is an Iridium® core technology component providing low-latency and weather resilient connectivity using the Iridium’s global satellite constellation’s unique Low-Earth Orbit architecture of 66 cross-linked satellites.

The small-form factor of the transceiver makes it uniquely suited for remotely deployed IoT devices, personal communicators and unmanned and autonomous drones.

Features

  • Midband Speeds of 22 Kbps Transmit, 88 Kbps Receive
  • Simultaneous Voice and IP Data
  • Two (2) High Quality Iridium Certus® Voice Circuits
  • Pre-paid or Post-paid
  • Highly Mobile and Scalable
  • Truly Global Coverage
  • Low Latency
  • Supports External Passive Omni-directional Antennas

Technical specifications

Mechanical Dimensions

  • Length: 140 mm
  • Width: 60 mm
  • Depth: 16 mm
  • Weight: 185 g

Environmental Specifications

  • Temperature: -40ºC to + 70ºC
  • Vibration: SAE J1455

RF Interface

  • Frequency Range: 1616 MHz to 1626.5 MHz
  • Antenna: External Passive Omni-directional Antenna
  • Maximum Average EIRP 9 dBW (with Compliant Antenna)

DC Power Input

  • Input Voltage: 12 VDC +/- 2.5 V
  • Maximum Operating Current: 1.5A
  • Average Power Consumption (at Full Receive/Transmit at Room Temperature): 3.5W
